Ideal Fabrication LLC

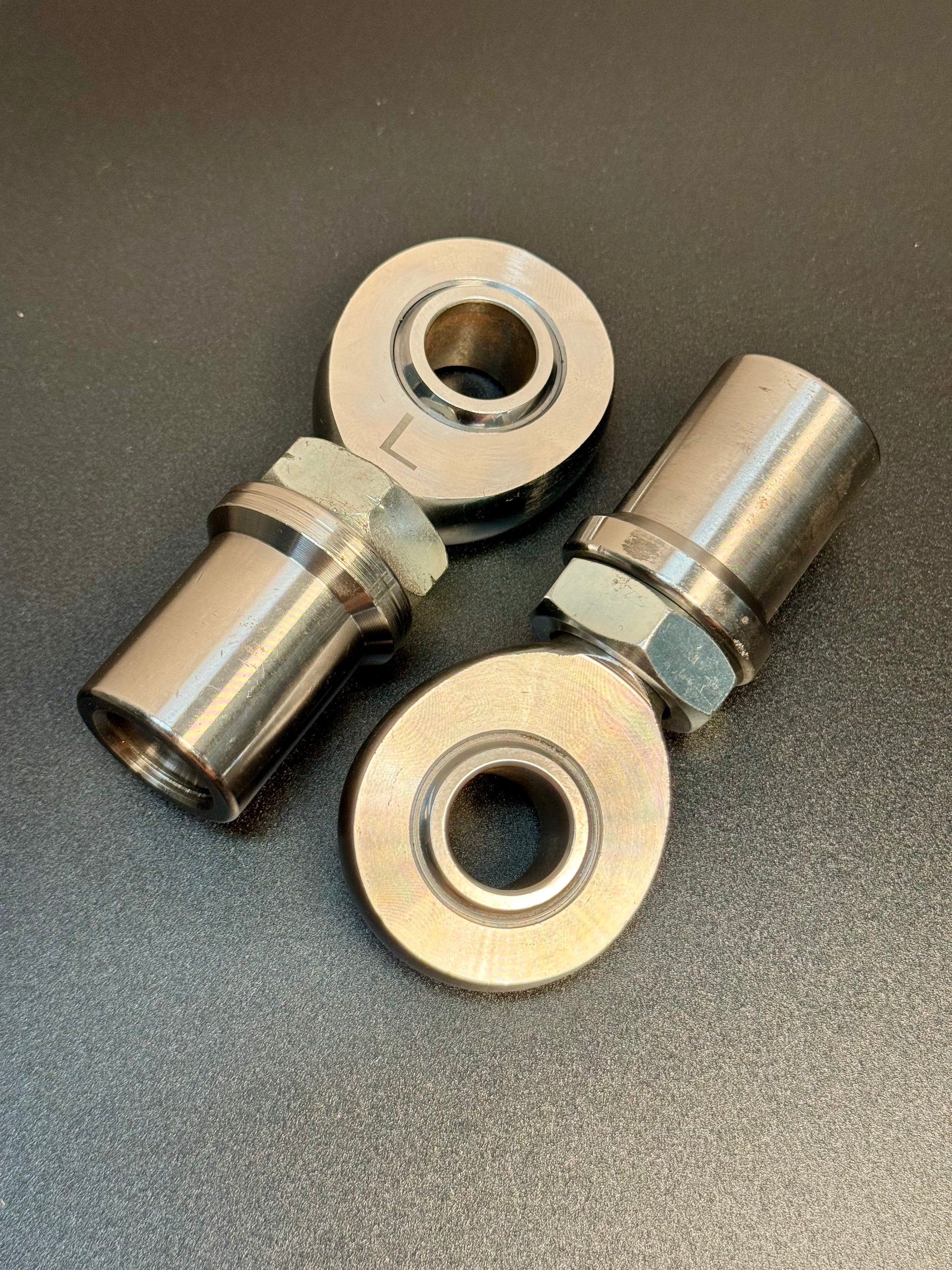

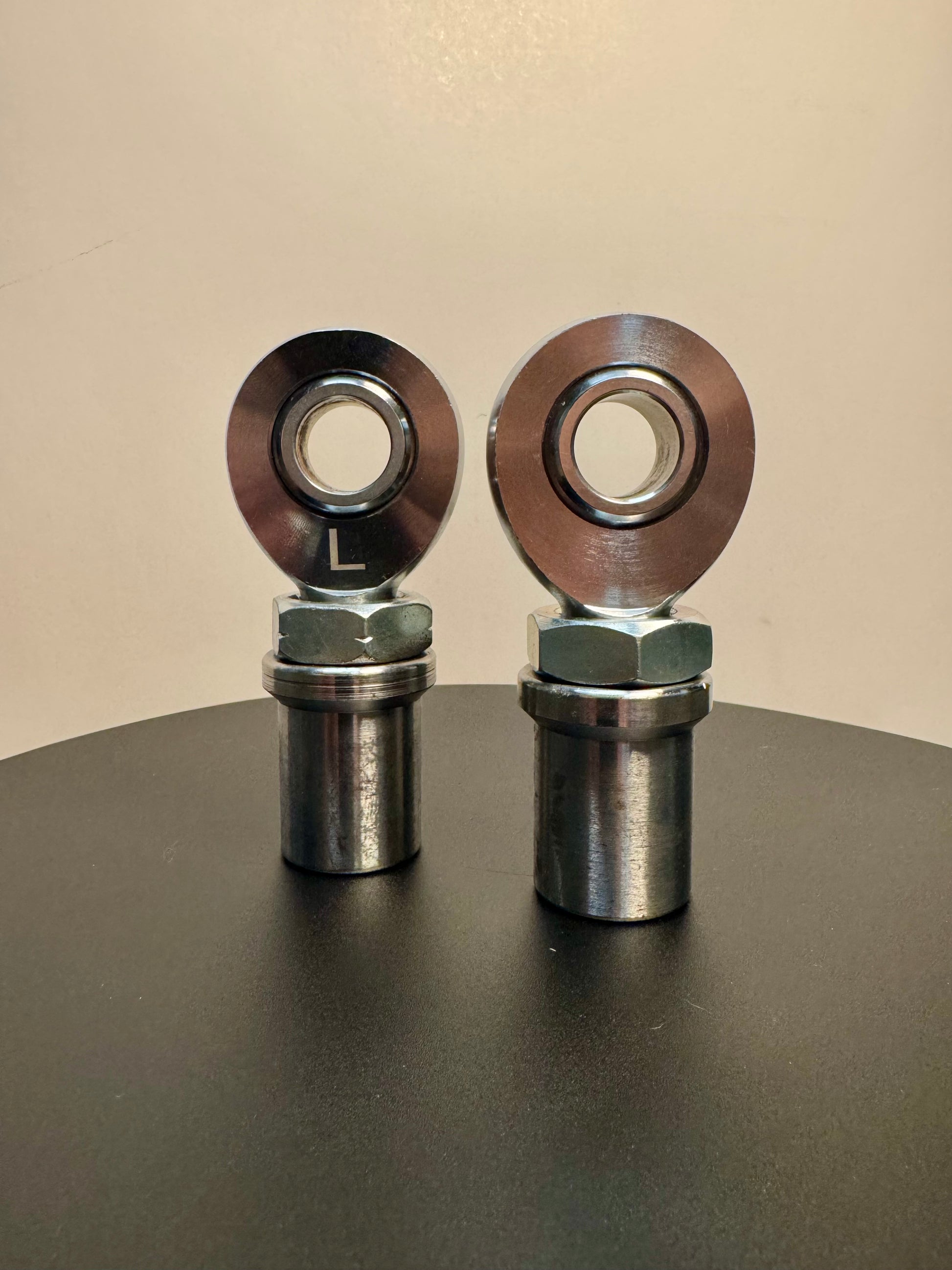

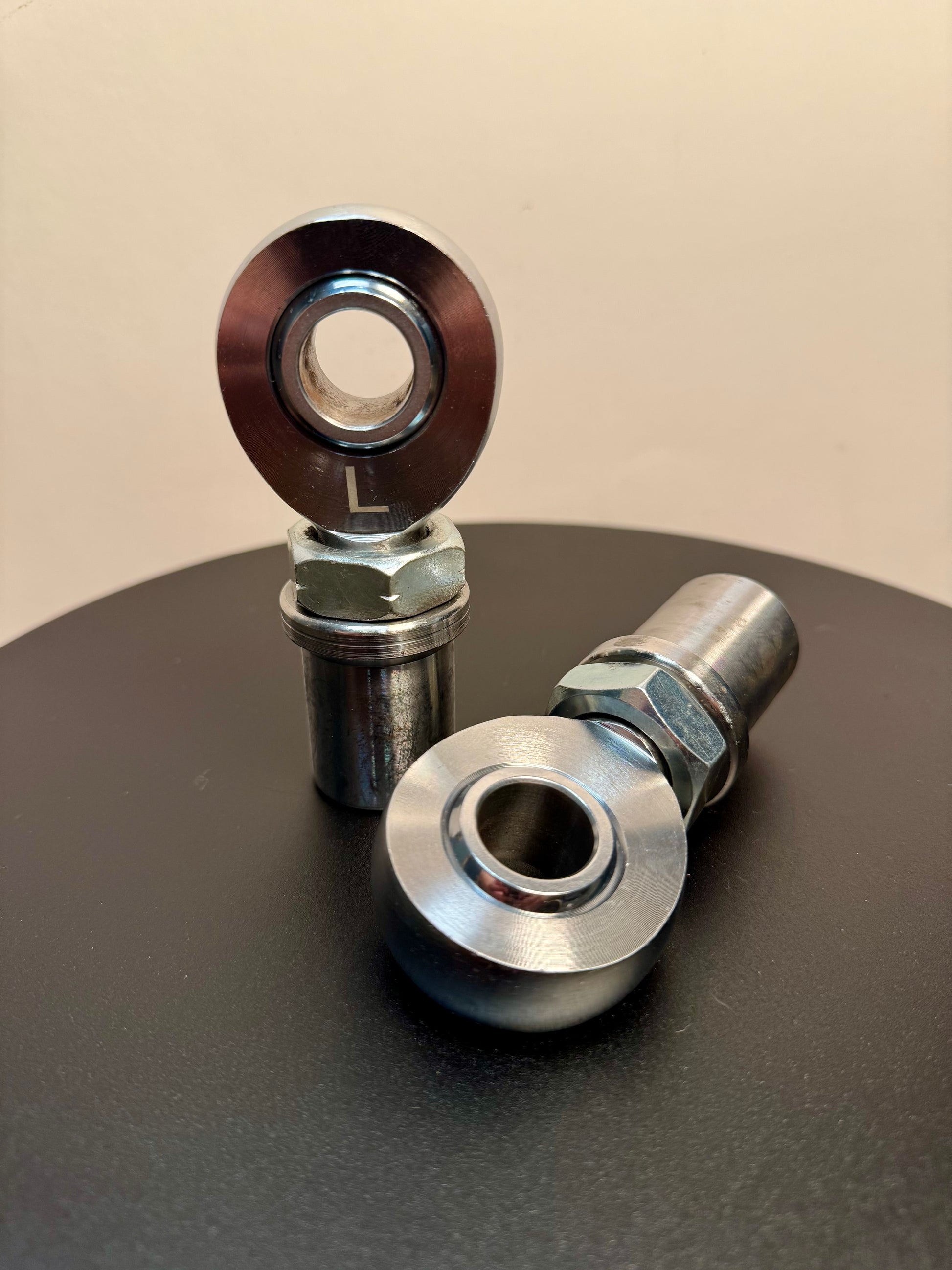

7/8" x 3/4" Heims

$27.00 USD

Sale Sold out

7/8" x 3/4" Heims 7/8" x 3/4" Heim & Nut ONLY 7/8" x 3/4" Heim Nut & Bung 7/8" x 3/4" Heim Nut Bung & Spacers

Quantity

Heim Specifications:
- Thread Size: 7/8"- 14
- Bore: 3/4 (.750)
- Ball Width: .875 (.875 )
- Radial Load: 55,692 lbs
- Chromoly: 4130
- Teflon Kevlar Liner
  - ( Increases Wear & Longevity )
Bung Specifications:
- Length: 2-5/8"
- Width: 1-3/4"
- Thread: 7/8"-14
  - Fits in 1-1/2"( 1.50 ) Outer Diameter Tube with ( .120 ) Wall Thickness, or an 1-1/4 ID Hole
